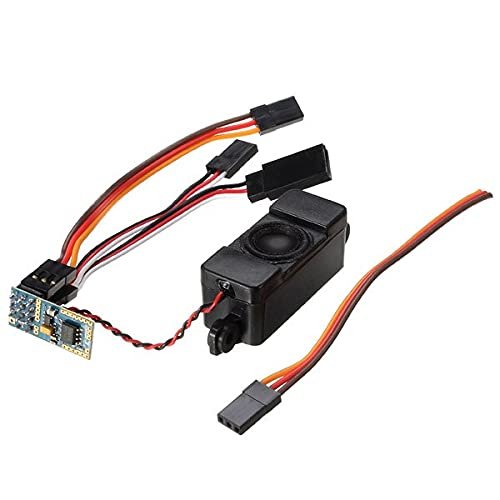

ShineBear DasMikro Programmable Sound Unit for Europe and US Trailer Truck

Description

• - Sound quality 22KHz
• - Internal 1W amplifier at 8 Ohm speakers
• - Receiver signals are used for speed information, this allows brushless or DC Motor usage
• - Fully assembled in SMD technology (no heavy, vibration sensitive components)
• - All wires included

DasMikro Programmable Sound Unit for Europe And US Trailer Truck
Descriptions:
This sound unit is developed for electric powered RC trailer or truck. It could be used to 1:32, 1/24 and 1/18 RC vehicles, especially suitable for 1:24 ITALERI and Revell 1:24 series model RC conversion. rovide more than 30 different sound files for many Europe and US trailer and truck engines.
Features:
- Sound quality 22KHz
- Internal 1W amplifier at 8 Ohm speakers
- Receiver signals are used for speed information, this allows brushless or DC Motor usage
- Fully assembled in SMD technology (no heavy, vibration sensitive components)
- All wires included
- Very little dimension and weight
Technical Data:
Brand: DasmikroItem: Programmable Sound Unit
Dimension: 11 x 23,5 x 3,2mm (min.11x16x3,2mm)
Voltage: 3V to 5V (supplied by the receiver) Note the maximum supply voltage of 5V!
Current: app. 10mA without sound, app. 250mA at max. volume
Speaker: 8-32 Ohm
Output power: 1W at 8-Ohm at 5V. 0,6W at 8-Ohm at 3V
Proportional inputs: 1ms to 2ms
Sound quality: up to 22 kHz
Sound selection play by a 3 position switch (toggle switch)
This control mode need a toggle switch with neutral position (recommended), or a common proportional channel.
Selecting a sound or function:
The desired sound (e.g sound #3 or function) is selected by pushing the switch/stick 3 times from its neutral position to high position (>1.8ms). The selected sound/fuction is triggered/played by pushing the switch/stick to low position ( normal mode. Bring throttle stick to minimum and control the center position of the toggle switch.
2. Bridge Learn contract about 0.5 seconds until
