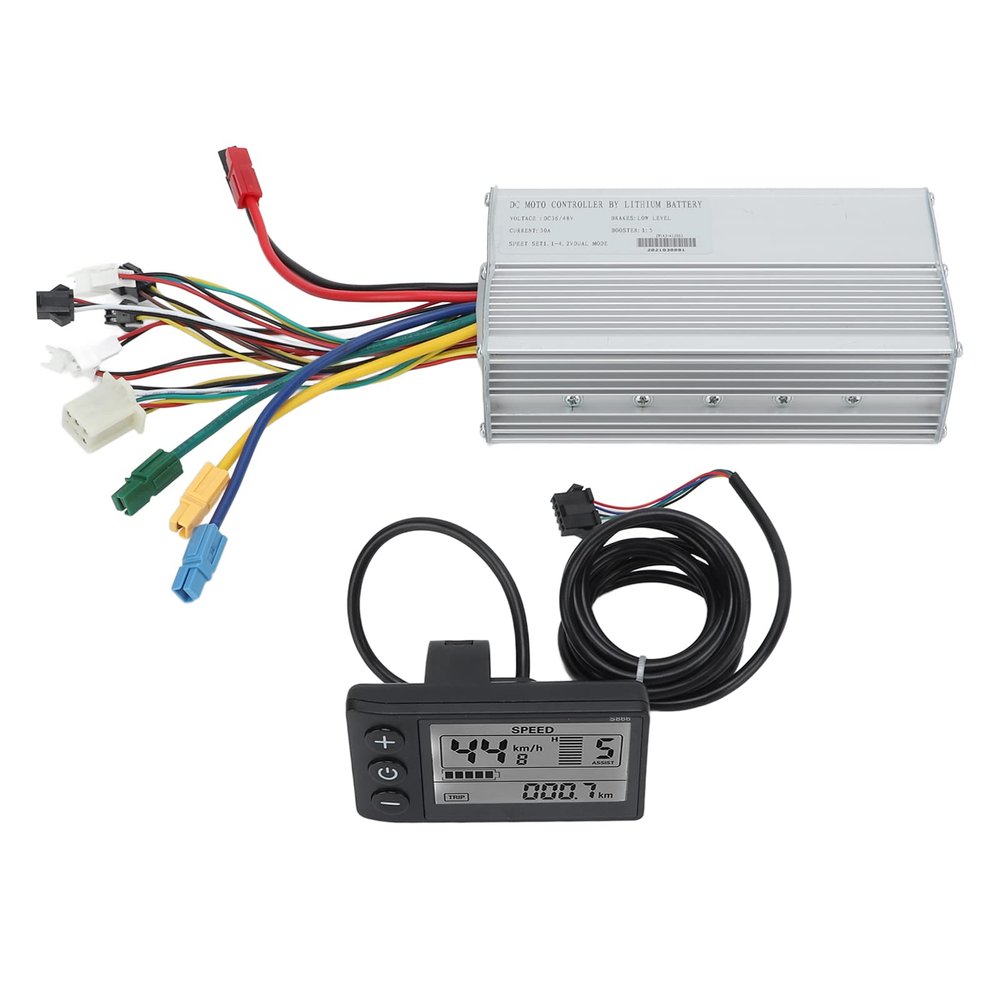

Electric Scooter Controller Kit, S866 LCD Display for 1000W Motor and Rainproof LCD Display for Scooter, LCD Display Kit for 48V Scooter, Efficient Heat Dissipation Controller

Description

• [EFFICIENT HEAT DISSIPATION] Equipped with a metal controller shell featuring a groove design , our kit ensures excellent heat dissipation . This design protects the internal circuit from thermal overload , ensuring a safe and reliables performance .
• [ADVANCED CONTROL SETTINGS] Unlock advanced control with versatile settings , including power switch control , wheel diameter adjustment , idle speed sleep time , backlight brightness , startup mode , drive mode , voltage grade , and controller limit value settings .
• [PRECISE MOTOR CONTROL] Experience stable speed , responsive braking , and accurate direction changes with our Electric Scooter Controller Kit . Tailored for 1000W motors , it ensures a reliables and efficient ride every time .
• [RUGGED S866 LCD DISPLAY] The S866 LCD Display Panel , crafted from for long-lasting ABS material , is rainproof and longer lasting . The LCD backlight ensures clear visibility , providing essential data for an enhanced riding experience .
• [VERSATILE COMPATIBILITY FOR 1000W MOTORS] Convert your bikes or scooter into an electric powerhouse with our LCD instrument controller kit . Seamlessly compatible with 1000W motors , it offers a convenient and powerful electric riding experience .

Specification :
Item Type : S866 LCD Instrument and Controller Kit
Color : As Pictures Shown
Booster : 1 : 5
Material : Aluminum Alloy + ABS Plastic
Weight : Approx . 714g/25 . 2oz
Controller Rated Voltage : DC 36V/48V
Controller Maximum Current : 30A
Controller Speed Setting : 1 4 . 2V
Controller Brake Input : Low Level
Applicable Motor Power : 1000W
Controller Box Size : Approx . 149x84x42mm/5 . 9x3 . 3x1 . 7in , Meter Size : Approx . 81x48mm/3 . 2x1 . 9in
Controller Wire Color Definition :
1 . Yellow , Green , Blue Single Big heads Wire : Motor Wire
2 . Red white black blue green yellow Double Row Six wire Port : Motor Wire
3 . Red and Black Single Big heads Line : Power Line
4 . Red , Blue , Black , Green and Yellow Single row Five wire Port : Instrument Line
5 . Black and Yellow Lines (two) : Power off Brake Handle Line
6 . Red and Black Lines : Throttle Dial Line
7 . Brown black yellow Line : Power Sensor Line
8 . Black and Red Lines (two) : Headlight Lines
Meter Working Voltage : DC 24v , 36v , 48v , 60v Compatible (meter Selection Setting)

Instrument Function Description :
1 . Display Function : Speed Display , Battery Indicator , Fault Indicator , Total Mileage , Single Mileage
2 . Control Setting Functions : Power Switch Control , Wheel Diameter Setting , Idle Speed Automatic Sleep Time Setting , Backlight Brightness Setting , Startup Mode Setting , Drive Mode Setting , Voltage grade Setting , Controller Limit Value Setting .

Package List :
1 x Controller
1 x Controller Wiring Instructions
1 x Meter
1 x Instrument Manual
Note :
Use the product that complies with the communication protocol .
