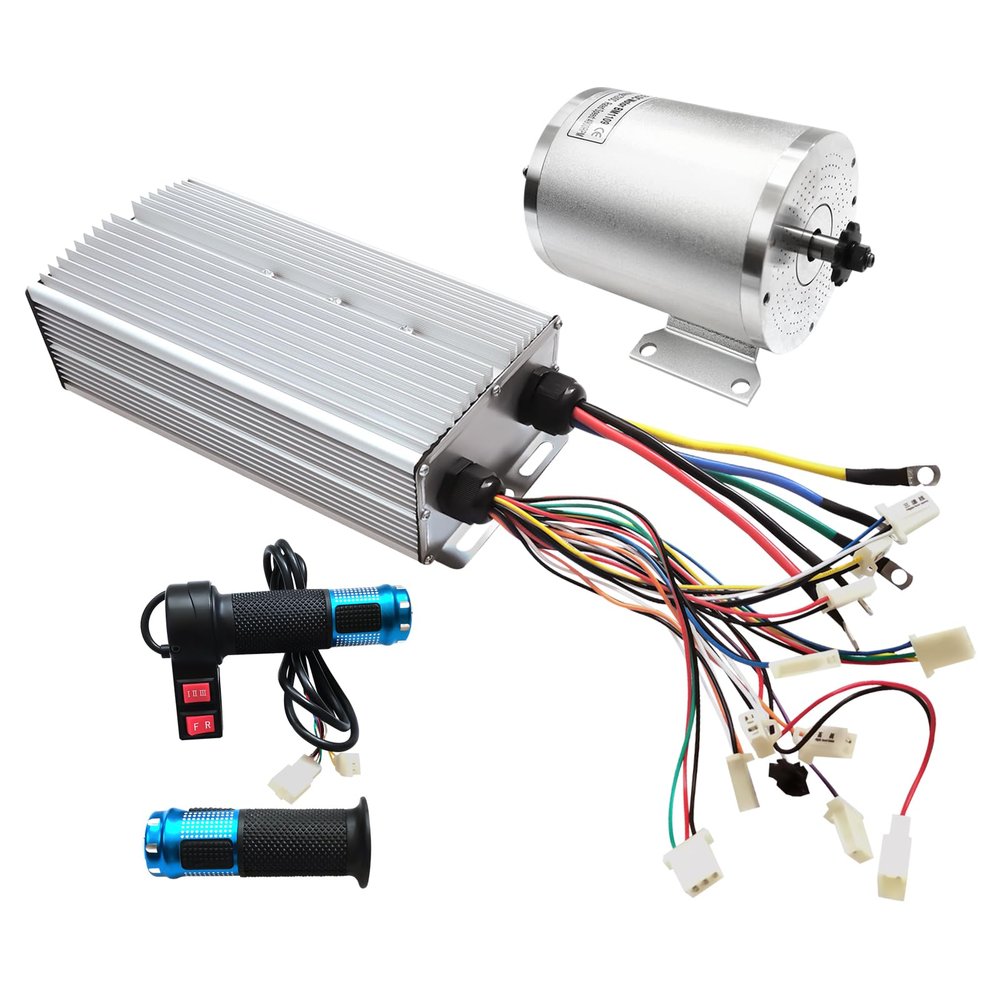

DDYOOK Electric Brushless DC Motor,72V 3000W Brushless Electric Motor,4900RPM Brushless Motor Kit w/Speed Controller for Electric Scooter E-Bike Engine Motorcycle DIY Part Conversion Kit

Description

• FUNDAMENTAL PARAMETERS- This brushless electric motor is powerful and efficient. Model: MOTOR BM1109, Motor Voltage: 72V DC. Output Power: 3000W, Rated Speed: 4900 RPM, Maximum Speed: 6600 RPM, Sprocket: T8F Sprockt / Chain, Rated Torque: 5.44 N.m,
• 3000W BRUSHLESS MOTOR- The brushless dc motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor is made of high tech, finish for water resistance and high working efficiency.
• STURDY ALUMINUM CONSTRUCTION- The electric go kart motor features an aluminum alloy shell to resist heat, cold, and corrosion, The excellent corrosion resistance of aluminum can extend the service life of this brushless motor kit.
• HIGH POWER- The brushless motor has an output power of 3000 watts and a torque of 5.44N.m. The powerful power can provide sufficient power for your electric car to drive easily. Its 5.44N. m torque allows you to climb hills easily.
• MULTIPLE APPLICATION- Brushless motor is much better than the brushed motor due to its high efficiency, power frugal, low noise, long lifespan, stable operation. It is suitable for go karts, scooters, e-bike, ATV, motorized bicycle, moped, mini bikes, pocket bikes, etc.

Description
This brushless motor kit uses an all-copper motor, which is quieter, smoother, and more durable than brushed motors. The output power of the all-copper motor is 3000 watts and the maximum speed is 6600RPM. And the controller of this brushless motor kit has three-speed control of high, medium, and low gears, and also has a reverse function. Such a powerful, stable, low-noise brushless motor kit is a good partner for your scooter, electric bike, go-kart, electric bicycle, electric tricycle, etc.

Details
1. Three Speeds: The controller of this brushless motor kit has high, medium, and low three speeds, which can adapt to different speed requirements.
2. Low Noise: The brushless motor does not have the electric sparks generated by the brush motor operation, so its operation is smoother and quieter.
3. Easy to Operate: The handle is equipped with back and forth running and gear conversion buttons, you only need to gently press the button to complete the running direction and running speed conversion, which is very easy and convenient.
4. Multiple Heat Dissipation Holes: The front and rear belts of the motor are equipped with multiple heat dissipation holes to help the motor dissipate heat in time. An excellent heat dissipation system makes the motor run more stable.

Specification
Material: Aluminum, Copper, Rubber
Motor Type: High-speed BLDC Brushless Motor
Motor Voltage: 72V
Motor Output: 3000W
Motor Rated Speed: 4900r/min 6600RPM (MAX)
Motor Diameter: 107mm/4.21in
Distance between Two Motor Screw Holes: 9.5cm/3.74in
Motor Rated Torque: 5.44N.m
Motor Application Chain: T8F Sprockt / Chain
Controller Power: 3000w
Controller Voltage: 60-72V DC
Controller Current: 80A
Controller Mosfet: 24WF
Controller Turn Under Voltage: 0.8-4.2V
Brake Potential: High Level Brake/Low Level Brake
Kit Weight: About 8kg/17.63lbs
