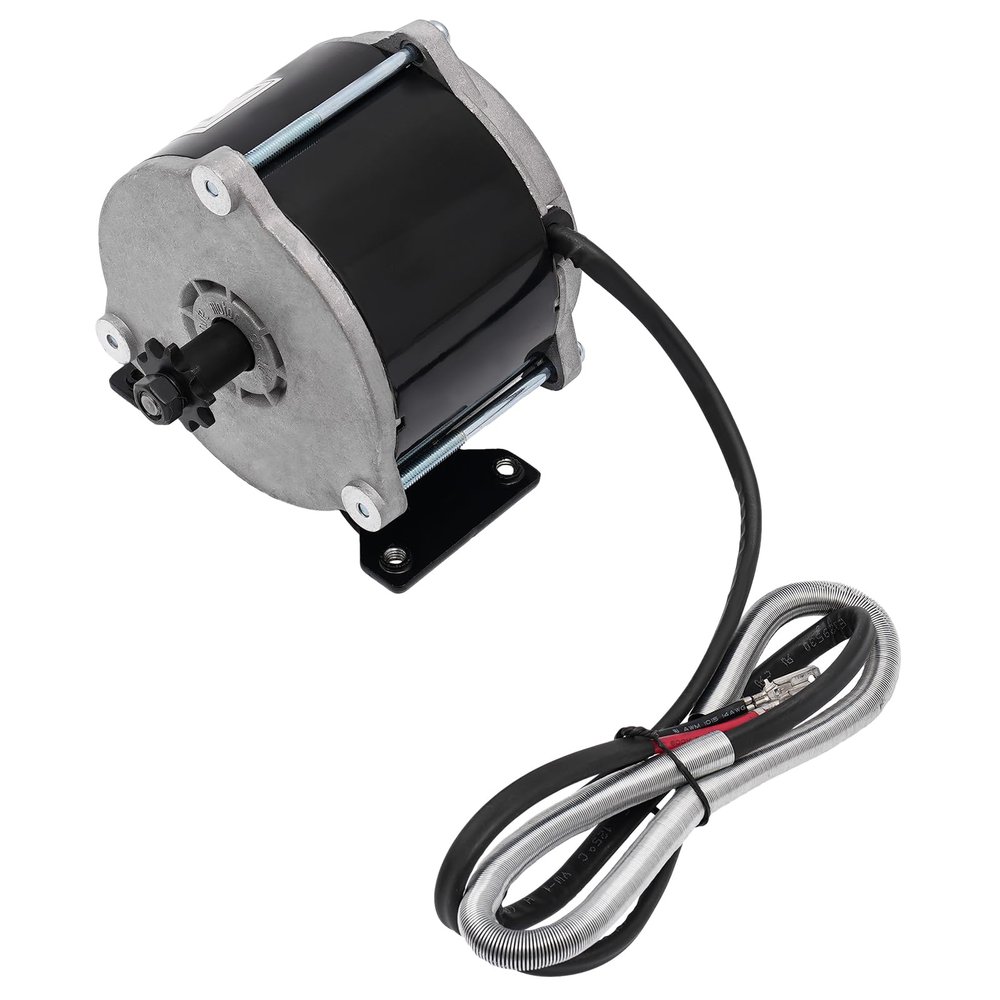

CNCEST Electric Bicycle Brushed Motor,Brushed DC Motor (36V)

Description

• Easy to Move: The compact size(4.3*1.65 inches) and light w-e-i-g-h-t(gross weight: 6.2 lbs) make it easy to move everywhere.
• Large Load Capacity: Compared to high-speed motors, this product can support a heavy load of up to about 440.9 lbs, providing a more powerful operation.
• Long Power Cable: The long power cable(3.3 ft) adds convenience and extraordinary mobility when using and installing this motor.
• Four-hole Base: The motor features an enlarged and thickened base, which increases the contact area and ensures stability while the motor is working.
• Application It's suitable for motorized bicycles, mopeds, bikes, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, electric vehicle modifications, and several small mechanical equipment.

Specifications
Model: MY1018E-D
Material: Iron, Aluminum, Copper
Color: Black, Silver
Style: Modern
Shape: Round
Assembly Required: No
Rated Voltage: 36V
Rated Speed: 1700RPM
No-load Current: 2A
Rated Power: 500W
Rated Efficiency: 78%
Protection Level: IP44
Rated Torque: 1.98NM
Insulation Level: F
Motor Load Capacity: About 200kg/440.9lbs
Gross Weight: 2.8kg/6.2lbs
Power Cable Length: 1m/3.3ft
Product Size: 10.9*4.2cm/4.3*1.65in
Package Size: 18.5*18.5*14.5cm/7.3*7.3*5.7in

Package Included
1* Gear Reduction Electric Motor

Notes
1.Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2.Please note that this product does not contain a cooling fan, please do not use it in a small confined space. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
