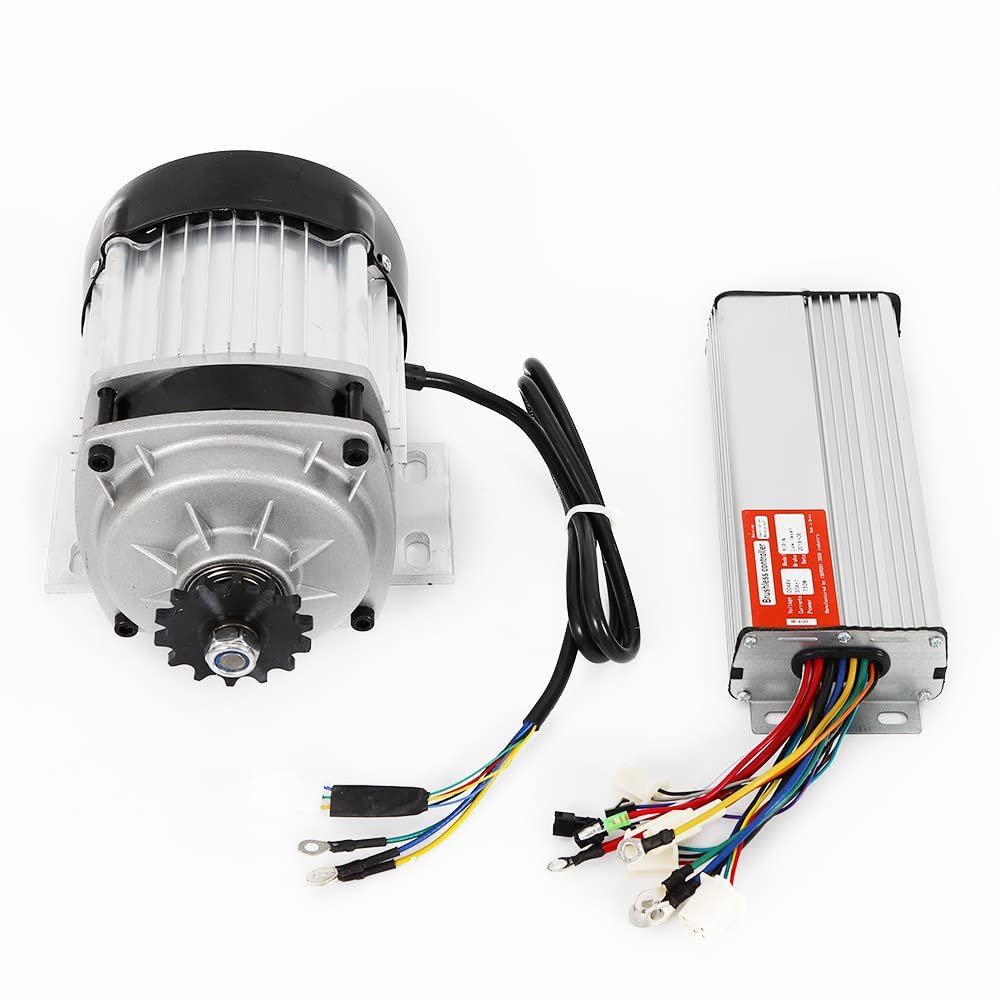

750W 48V Electric Brushless Dc Motor Kit,3100RPM 2.56N.m High Speed Motor with Controller,3-Speed

Description

• High Power and Torque: The brushless motor has a power of 750 watts and a torque of 2.56 N.m. The powerful power can provide enough power for your electric tricycle, and its 5.44 N.m torque can let you climb hills easily.
• Reliable&Easy to Maintain: Permanent magnet brushless motor eliminates the excitation winding, brush, and collector ring structure, so the whole structure is simple, avoiding the excitation winding of the excitation generator is easy to burn, break the wire, brush, and collector ring easy to wear and other failures, so its performance is reliable and easy to maintain.
• Three-speed Adjustable: The brushless motor's rated speed of 516rpm and a no-load speed of 3100rpm provide enough running speed for your e-bi-ke. It also has three adjustable speeds: high, medium, and low to suit different needs.
• Excellent Load Capacity: With this high efficiency, energy saving, and stable performance permanent mag-net brushless motor, your electric tricycle can carry a load of about 661 pounds, which gives you peace of mind to load people or goods.
• Water-proof/Dust-proof:The motor with IP65 protection level can effectively pre-vent splashing water and dust from entering and causing damage,which greatly improves the durability of the product and extends its service life.

Description
The permanent ma-gnet brushless motor carefully built with pure copper coil and aluminum case can provide 750 watts of superpower and greater than or equal to 83% high efficiency for tricycles. Meanwhile, the permanent ma-gnet brushless motor without brush loss and excitation power is easy to maintain and energy-saving. This powerful, stable, and low-noise permanent ma-gnet brushless motor is a good partner for you.
Details
Thickened Base: The thickened base can support the motor well to prevent shaking, which greatly enhances the safety for you to use with peace of mind.
Heat Dissipation Windshield: The back cover of the machine is hollowed out to increase its heat dissipation capacity, which can effectively increase the length of use of the motor.
Smooth Output Shaft: The smooth and delicate output shaft can protect your hands from scratches during installation. And the smooth output shaft can reduce friction to reduce noise.
Application
It is suitable for tric-ycles, e-bi-kes, electric scoo-ters, medium size tric-ycles, etc.
Specification
Gross Weight: 6.1kg/13.44lbs
Package Size: 40*30*20cm/15.74*11.8*7.9in
Controller
Matching Motor: 48V 750W
Rated Voltage: 48V DC
Under Voltage Protection: 420.5 V
Speed Regulator (Throttle): 1-4 V
Motor
Material: Aluminum, Copper
Motor Type: Pure Copper Motor
Rated Voltage: 48V DC
Output: 750W
Rated Current: 15A
No Load Current: 3.0A
Rated Speed: 516RPM
No Load Speed: 3100RPM
Gear Ratio: 1:6
Drive Sprocket: 420-14T
Rated Torque: 2.56 N.m
Efficiency: 83%
Max. Load-bearing Capacity: About 300kg/661lbs
Protection Level: IP65
Speed Gears: High, Medium, Low
Motor Size: 23*18*14cm/9*7*5.5in
Motor Net Weight: 5.2kg/11.46lbs
Package Included
1*Motor
1*Controller
