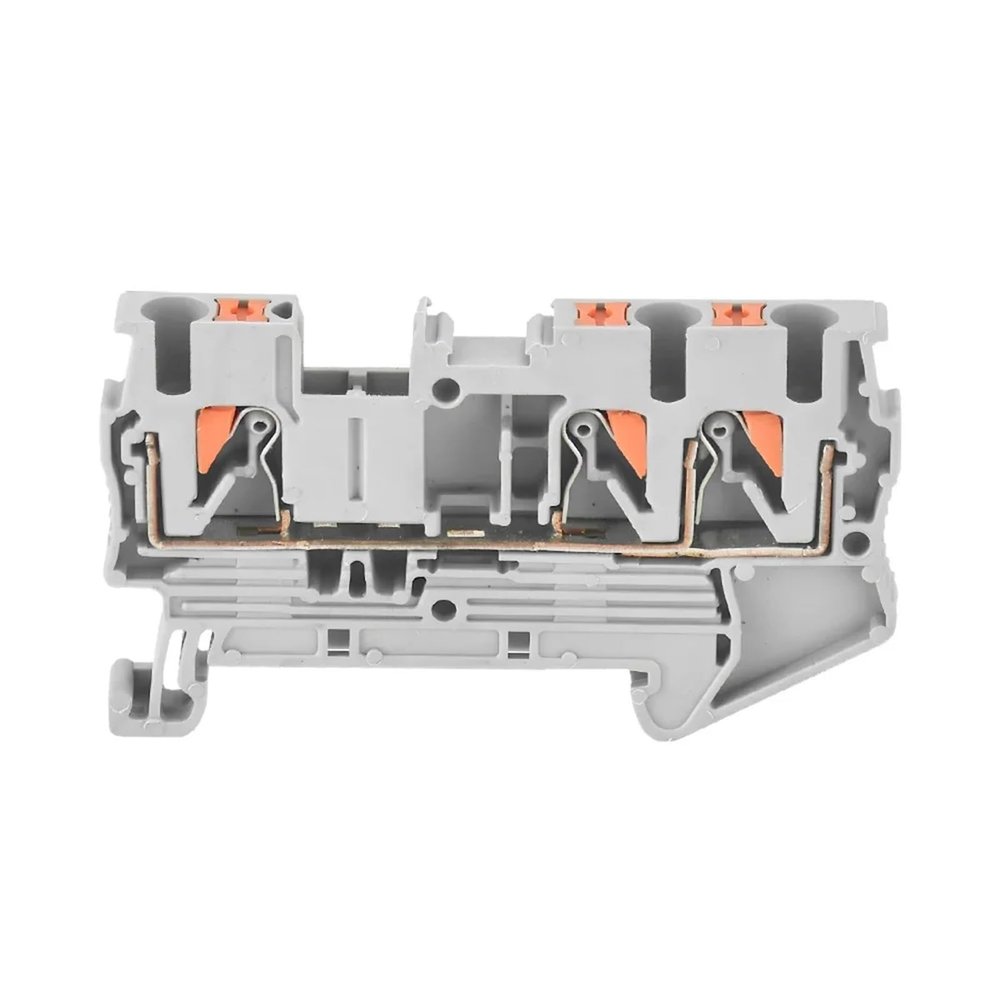

50pcs PT 2.5-Twin 3 Din Rail Terminal Block Mount Conductors Push in Spring Screwless Feed Through Wire Conductor Wire Connector(Gray)

Description

• Wire Terminals
• 50pcs PT 2.5-Twin 3 Din Rail Terminal Block Mount Conductors Push In Spring Screwless Feed Through Wire Conductor Wire Connector

Wire Terminals
End cover
D-ST2.5-TW
Jumpers Bridge
FBS 10-5
Marker strip
ZB5
End stop
E-UK
Marker Carrier
B1/B2
Marker Carrier
KLM-A
Ground terminal block
PT2.5-PE
Din Rail
Type No.
Details
Accessories
PT -2.5 -TWIN
800V/31A
0.2-4mm2/0.2-2.5mm2
L60.5/H36.5/W5.2mm
End Cover:D-ST2.5-3
Bridge : FBS2-5, FBS3-5,FBS5-5,FBS10-5
Marker Strips:ZB5
Model No.
PT 2.5TWIN
Length/Height/Wide(mm)
60.5/36.5/5.2
Connection method
Push-in connection
Material
Flame Nylon PA66, Tin plated brass conductor
Rated Voltage/Current
800V/31A
Cross section, solid/soft Cable
0.2-4mm2/ 0.2-2.5mm2
Conductor Size
24-12 AWG
Mounting Type
DIN Rail NS 35
Recommend
Type No.
Cross section
solid/soft Cable
Voltage/Current
Click it
UK2.5B
0.2-4mm2;/0.2-2.5mm2;
L42.5/H41/W6.2 mm
800V /32A
Buy
ST2.5
0.2-4mm2;/0.2-2.5mm2;
L49/H35.5/W5.2 mm
800V /31A
Buy
PT2.5
0.2-4mm2;/0.2-2.5mm2;
L48.5/H35.5/W5 mm
800V /31A
Buy
PTTB2.5
0.14-4mm2;/0.14-2.5mm2;
L68.8/H46/W5.2 mm
500V /22A
Buy
UK5-HESI
fuse holder
0.2-4mm2;/0.2-4mm2;
L73.5/H56.5/W8.2 mm
800V /6.3A
Buy
DIKD1.5
0.2-4mm2;/0.2-2.5mm2;
L73/H54.5/W6.2 mm
250V /32A
Buy
