3KW Brushless Motor Kit, Electric Bicycle Motor with Speed Controller, High Speed Electric Scooter Motor, Suitable for Scooters, Electrics Motorcycles, Go-Karts, Modified Bicycles

Description

• Excellent Performance The brushless motor adopts high power (3KW), which can provide 4900 rpm rated speed and 6000 rpm no-load speed, just like traveling through the time and space tunnel intertwined with science and technology and speed, perfectly interpreting the aesthetics of speed.
• Safe to Use The motor of the high-speed electric scooter is IP33 rated, insulated to Class E, and adopts a power-locking design. Even in outdoor activities where the environment is a bit harsh, it can provide you with a higher level of safety.
• High load capacity High load capacity (220.5-440.9 lbs). Whether you're a professional athlete or a recreational sportsman, it offers a thrilling riding experience.
• Increased Efficiency E-bike motors with speed controller are more energy efficient ( 80%) compared to brushed motors, brushless motors convert more electrical energy into mechanical energy, which extends the range and improves the efficiency of use.
• Free Speed Control The package includes a pedal gas pedal and a set of forward/reverse handles. You can choose any one of them as your speed control throttle to help you realize free speed control and meet your different needs.
• Widely Used Brushless motor kit is suitable for scooters, electric motorcycles, dune buggies, go-karts, modified bicycles, mechanical equipment and so on.

Specification
Material: Aluminum, Rubber
Brushless Motor Type: Pure Copper Motor
Speed Gears: Low / Medium / High (After Connecting Three-speed Line)
Motor Voltage: 48-72V
Motor Efficiency: 80
Power: 3KW
Assembly Required: Yes
No-load Current: 8.8A
Rated Current: 43A
No-load Speed: 6000rpm
Rated Speed: 4900rpm
Rated Torque: 5.4 N.m
Protection Grade: IP33
Insulation Grade: E
Load Weight: Approx. 100-200kg/220.5-440.9lbs
Foot Pedal Accelerator Size: 5.5*17.5*12.8cm/2.2*6.9*5in
Controller Size: 21.6*8.3*4.4cm/8.5*3.3*1.7in
Leg Distance: 12cm/4.7in
Leg Height: 1.5cm/0.6in
Interface Length: 3cm/1.2in
Motor Size(*L): 10.2*13.2cm/4*5.2in
Package Size: 39*35*25.5cm/15.4*13.8*10in
Net Weight: 6.45kg/14.2lbs
Gross Weight: 7.7kg/17lbs

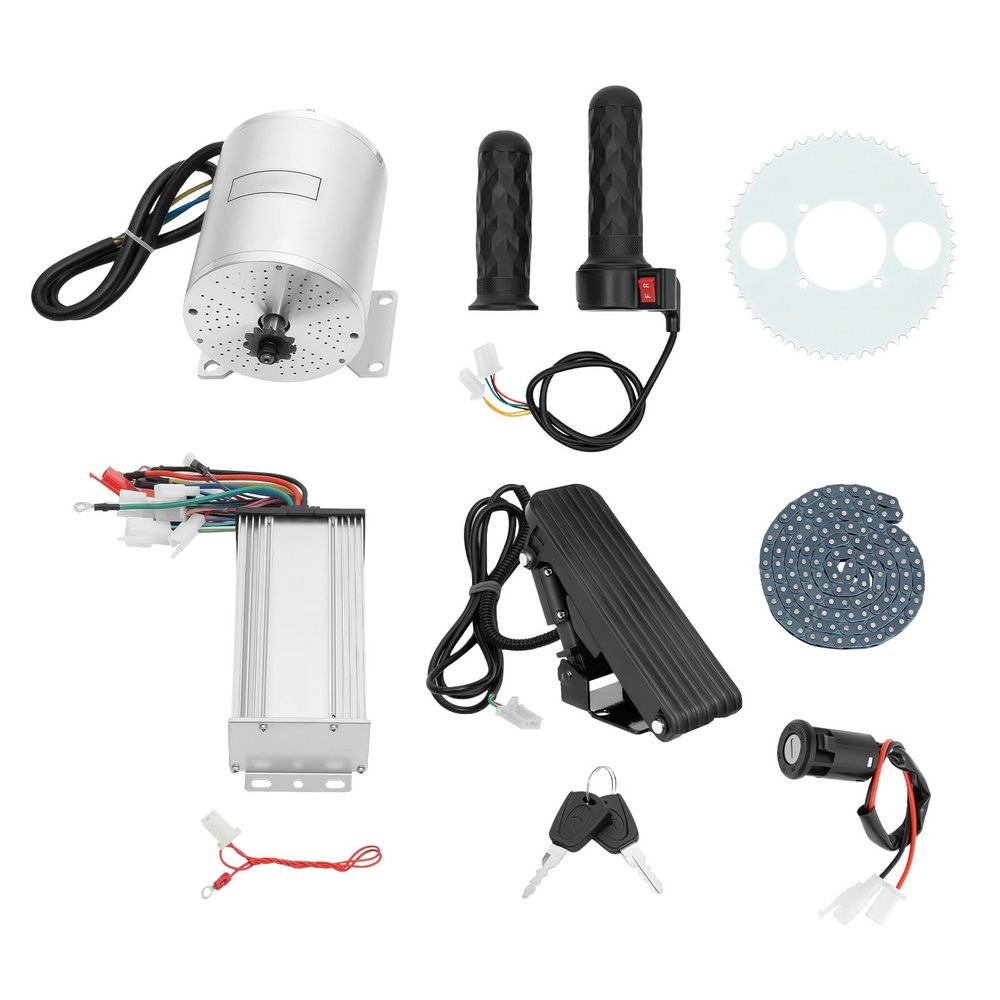

Package Included
1* Brushless Motor
1* Controller
1* Foot Pedal Accelerator
1* Electric Door Lock
1* Chain
1* Chain Disk
1 Pair* Lock Keys
1 Set* Forward/Backward Handlebars
Other Accessories for Installation

Notes
1.Please note that the motor speed will be determined based on the load weight and other factors.
2.When connecting the controller to the wires, please make sure to connect the correct color to it. Otherwise, the controller may be damaged.
3.Please do not let the motor run in reverse for a long time, as this will shorten its service life.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
