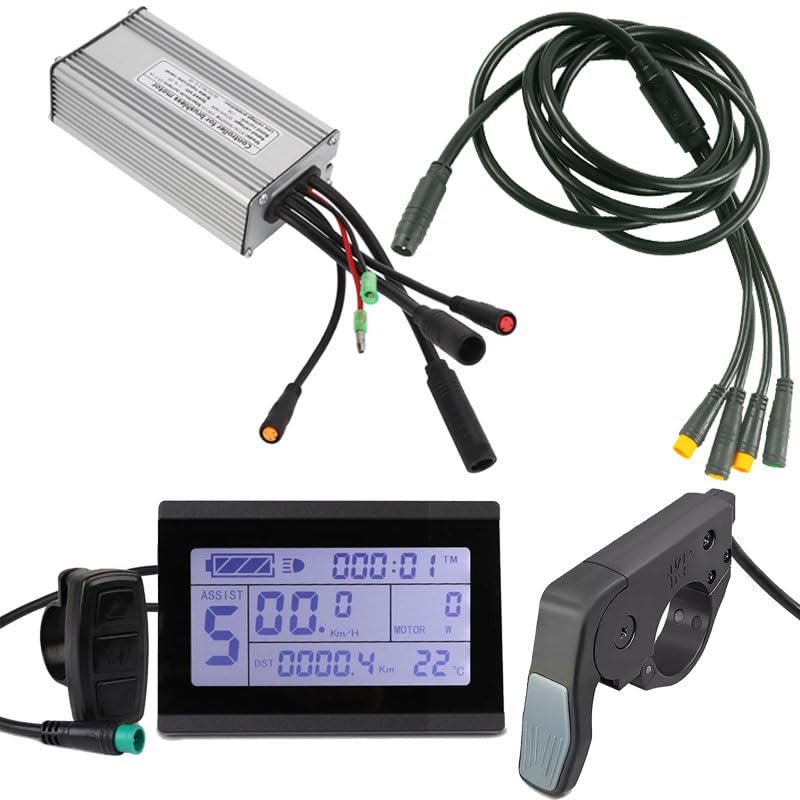

36V 48V 750W KT 25A Electric Bicycle 9 PIN Brushless Motor Controller Sine Wave, Waterproof LCD3 Controller Display Panel TT009 Thumb Throttle 1T4 Cable Kit Modification for E-Bike Electric Bike

Description

• Sensitive Control: The electric bicycle controller is a brushless motor controller, which can provide stable speed and sensitive control of braking and direction changes. The wires and interfaces of countless controllers are sturdy and durable, which can ensure less failure during long-term use.
• Outstanding accessories: The drive motor starts more smoothly and rides more comfortably, and the single-line instrument increases the adaptability by about 80%
• Data display: Riding speed, single mileage and accumulated mileage, riding time, power-assisted gear, motor power and temperature, battery voltage and charging status, braking status and working environment temperature and other riding parameters.
• 1T4 CABLE: 1T4 cable is used to connect the display, the thumb throttle and two brake levers, used to connect the controller and waterproof accessories.1 to 4 connect the left and right brake levers, screen, throttle. Suitable for 24V 36V 48V 60V 72V controller, suitable for most electric bikes, with strong interface compatibility
• EASY INSTALLATION: Open design, easy to install on 22mm diameter handlebars, no need to remove the bike handlebars to install. Cable Length: 160cm/5.24ft; Throttle Diameter: 22mm/7/8"

How to Use:
Controller wiring instructions: Connect the corresponding line interface to realize the function.

Specification:
Item Type: Controller
Color: As Picture Shown
Material: Aluminum Alloy
Weight: Approx. 420g / 14.8oz
Controller Box Size: Approx. 125x66x39mm / 4.9x2.6x1.5in
Controller Type: Controller
Connector Type: Waterproof Connector
Maximum Current: 251A
Rated Voltage: DC 36V / 48V
Speed Setting: 1-4.2V
Rated Current: 12A
Brake Input: Low Level
Low Voltage : DC 30/400.5V
Applicable Motor: Usually 750W Motor

Controller Wire Color Definition:
1. Black Long Wire: Motor Wire
2. Red and Black Single Big Wire: Power Cord
3. Black Long Wire (Fine Hole): One for Four/One for Five (9 Cores)
4. Black Line and Red Head: Light Line
5. Black Wire and Yellow Head: Power Assist Sensor Wire

Package List:
1 x Controller
1 x LCD3
1 x TT009
1 x 1T4
1 x Manual

Note:
It needs to be used in conjunction with products that are consistent with the communication protocol. It needs to be used with a brushless motor. It is only compatible for KT series instrument products. The motor does not need a brand, and the connector can be used.
