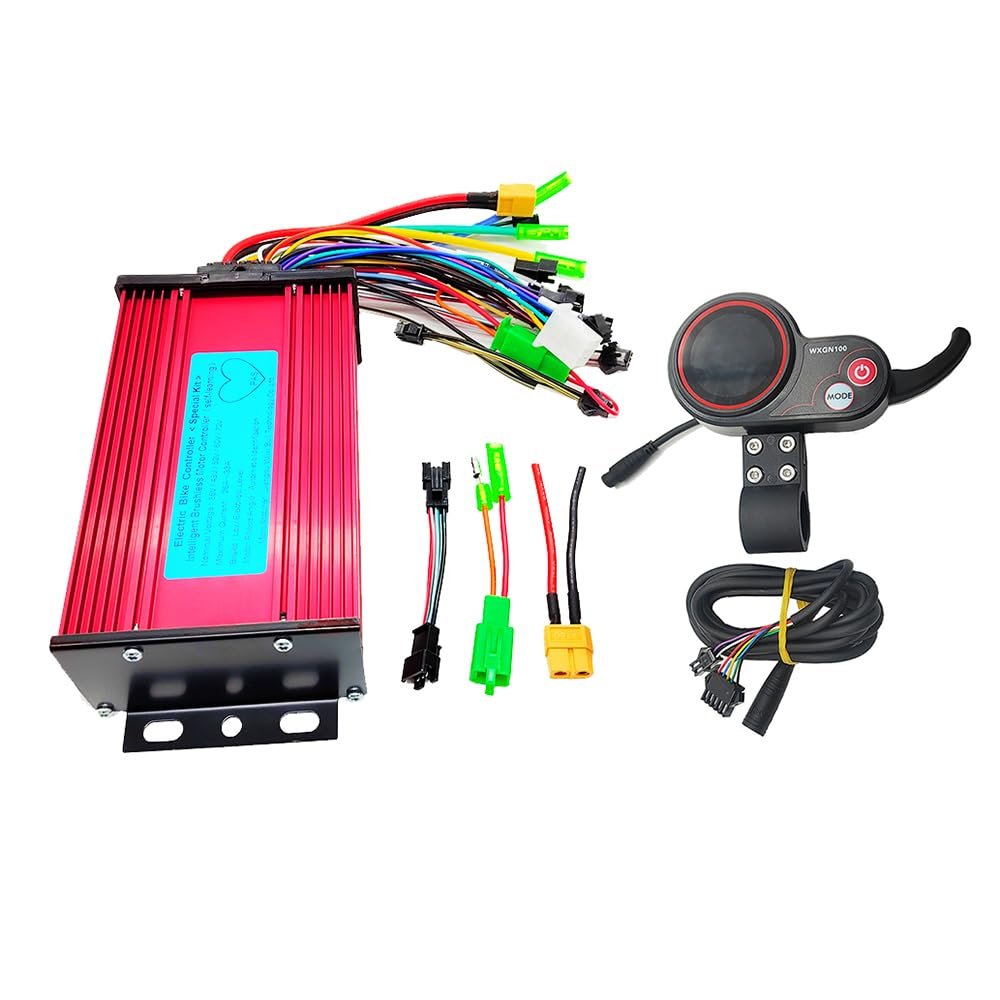

36V 48V 60V 500W 800W 1000W 26A 30A 33A Brushless Square Wave Controller with LCD Display for Electric Bike Electric Scooter

Description

• 1. The electric scooter brushless controller and instrument set is an electronic device specifically designed for electric scooters, which can control the speed and direction of the scooter and is equipped with a display instrument, making it easy for users to understand the running status of the scooter.
• 2. This set adopts a brushless design, making it smoother to use, more stable, and has a longer lifespan.
• 3. This set is suitable for various electric scooters of different brands and models, and can meet the different needs of users.
• 4. This controller adopts advanced technology and has excellent performance and durability, ensuring the safety and stability of the scooter.
• 5. This set is available in various models and prices on Amazon, allowing users to choose according to their needs and budget. At the same time, before purchasing, it is recommended that users carefully review the product description and reviews in order to choose a product that meets their needs.

intelligent brushless square wave controller for electric bike/electric scooter/brushless motor
not connect hall wires aslo can work

voltage36V/48V/52V/58V/60V/64V universal
current26A-36A
number of transistors: 12
rated power500W-800W-1000W all can work

1.brake light power
2.intelligent recognition
3.low level brake
4.reverse gear
5.head light/rear light
6.hall
7.PAS (pedal assist)
8.linear brakeThumb brake
9.regeneration brake
10.speed control handle
11.electric door lock
12.LCD
13.phase line
14.battery

how to connect
1.connect the phase line color to color connection
2. connect the battery line(red wire :battery + , black:battery-)
3. connect the controller LCD line,if not use LCD,can connect throttlecolor to colorconnect electric door lockif your throttle not have electric door lockcontroller electric door lock need short
4. connect the hall line(if motor without hall line, don't need connect)
5.docking the two intelligent recognition line also call self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line againif wheel forward ,Separate the self-learning line.
3.This function allows the controller to intelligently identify the battery voltage and adjust the rotation direction of the motor
6.other functions can be connected as needed.
