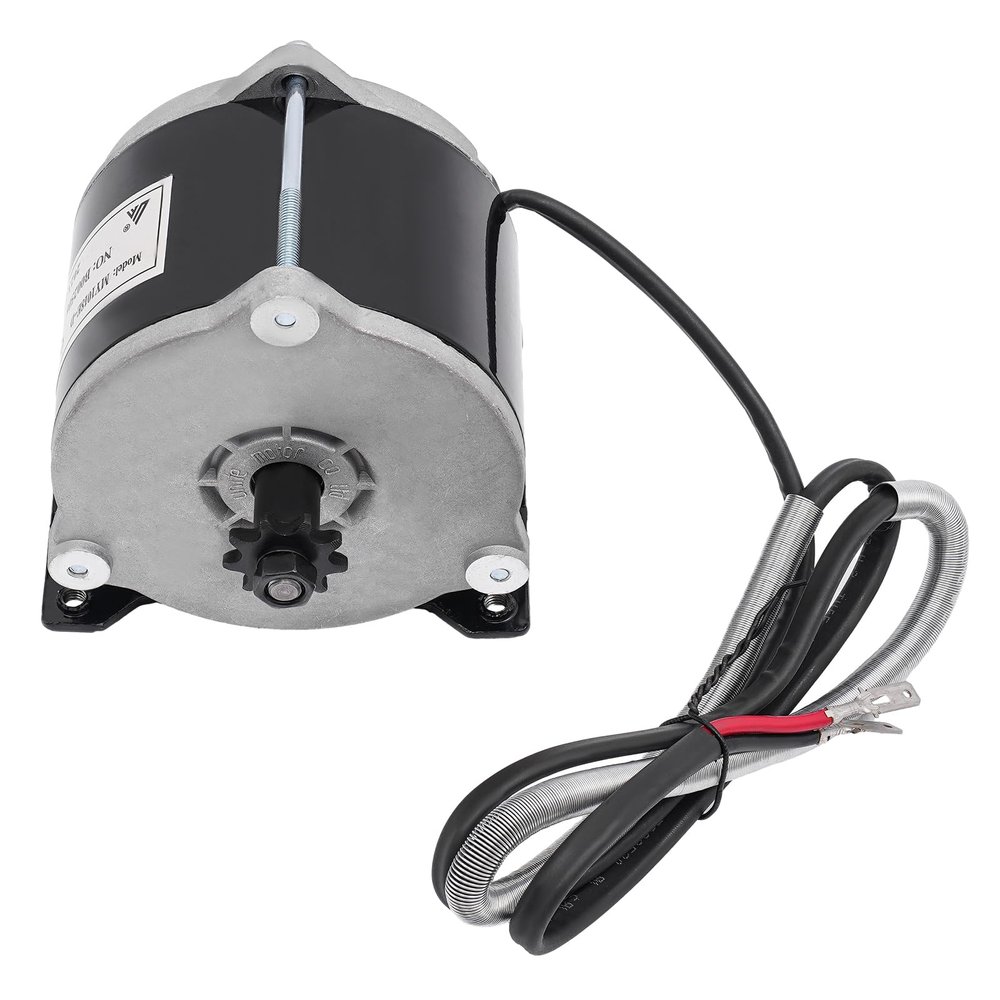

24V DC 500W Small Brushed Electric Motor for Electric Scooter Drive Speed Control, 1700RPM,Brushed DC Motor, Brushed Electric Motor, Gear Reduction Electric Motor, Electric Bicycle Brushed Motor

Description

• High-quality Material: The product is made of iron, copper, and aluminum, with high hardness, high-temperature resistance, and corrosion resistance, ensuring a long service life.
• Excellent Performance: The 500W brushed DC motor has a 1700rpm speed and high torque, achieving efficient deceleration.
• Flexible Rotation: By connecting the power cord of the motor in the forward/reverse direction, this product can be adjusted to rotate clockwise or counterclockwise, increasing its flexibility and extending its service life.
• Large Load Capacity: Compared to high-speed motors, this product can support a heavy load of up to about 440.9 lbs, providing a more powerful operation.
• Easy to Move: The compact size(4.3*1.65 inches) and lightweight(gross weight: 6.2 lbs) make it easy to move everywhere.
• Assembly in a Breeze: The simple structure and predrilled holes allow you to install it with less effort and time.
• Application: It's suitable for motorized bicycles, mopeds, bikes, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, electric vehicle modifications, and several small mechanical equipment.

Description Our 24V gear reduction electric motor can help you achieve high-efficiency deceleration for your e-bike. High-quality materials make it sturdy and durable. It has advantages such as excellent performance, flexible rotation, and large load capacity. It adopts gear transmission to reduce the speed of the motor to realize the smooth starting and low-speed riding of the e-bike, which can bring you a more convenient and comfortable riding experience.

Details Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and better care for your skin when installing and cleaning it. Long Power Cable: The long power cable(3.3 ft) adds convenience and extraordinary mobility when using and installing this motor. Four-hole Base: The motor features an enlarged and thickened base, which increases the contact area and ensures stability while the motor is working.

Specifications Model: MY1018E-D Material: Iron, Aluminum, Copper Color: Black, Silver Style: Modern Shape: Round Assembly Required: No Rated Voltage: 24V Rated Speed: 1700RPM No-load Current: 2A Rated Power: 500W Rated Efficiency: 78% Protection Level: IP44 Rated Torque: 1.98NM Insulation Level: F Motor Load Capacity: About 200kg/440.9lbs Gross Weight: 2.8kg/6.2lbs Power Cable Length: 1m/3.3ft Product Size: 10.9*4.2cm/4.3*1.65in Package Size: 18.5*18.5*14.5cm/7.3*7.3*5.7in

Package Included 1* Gear Reduction Electric Motor

Notes
1.Please note that if you need to adjust the speed, you need to use it with a controller (not included).
2.Please note that this product does not contain a cooling fan, please do not use it in a small confined space.
3.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
