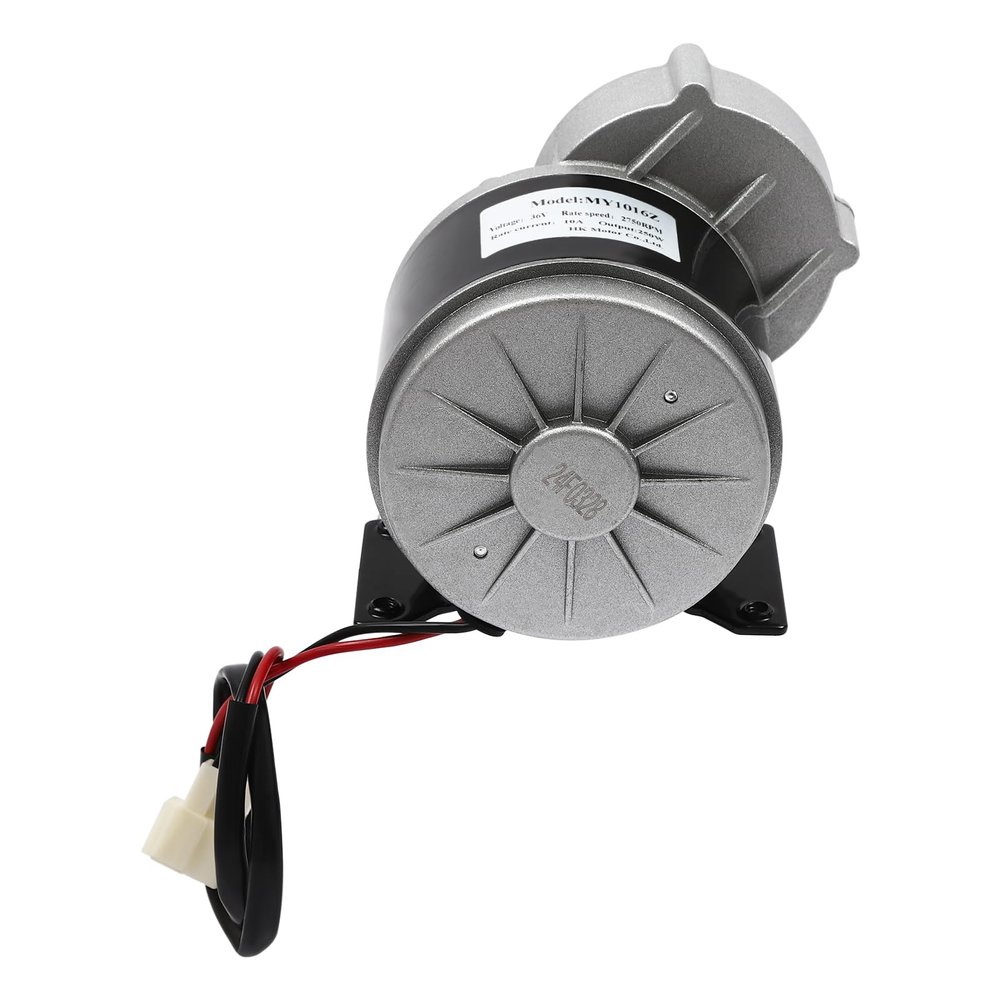

24V 250W Electro Motor Gear Reduction Electric Motor, Brushed DC Motor Powerful Electric Motor with Belt Pulley for Scooters, E-Bikes, Tricycles (36, Volts)

Description

• Easy to MoveThe small size ( 4.33*4.33*5.04inch) and lightweight (5.51lbs) of this geared motor make it very convenient to change the working position.
• Sturdy and Durable Superb iron, copper, and spray molding process make the product have corrosion resistance, rust resistance, abrasion resistance, and oxidation resistance, which can ensure long service life.
• Belt Pulley Design The design of the belt pulley cleverly applies the principle of friction transmission to transfer the strong power generated by the high-speed operation of the motor to the downstream equipment through the flexible belt medium, which realizes the optimal deployment of speed and torque.
• Good PerformanceOur brushed DC motor runs at up to 250W and 2750rpm, which minimizes energy consumption, makes the machine run smoothly, saves power, and improves efficiency.
• Ready to Use Without the need for complicated hole-punching or professional help, you just need to mount it on the working equipment and connect it to the power supply.

Details
Copper Coil: We use a pure copper coil with low-temperature rise and high-temperature resistance, which can ensure stable output.

Smooth Edges: They not only enhance the aesthetics of the product but also improve safety during use.

Application
It is suitable for scooters, e-bikes, electric cars, tricycles, scooters, seeders, etc.

Specifications
Moder: MY1016Z
Material: Iron, Copper
Surface Treatment: Spray Molding
Style: Modern
Color: Silver, Black
Mount Type: Free Standing
Power Source: Corded Electric
Motor Type: Brushed DC Motor
Rated Voltage: 24VDC
Output Power: 250W
Raterd Speed: 2750rpm
Rated Current: 14A
Rated Torque: 1N
Speed Adjustment Range: 0-300rpm
Power Cord Length: 40cm/15.75in
Product Size: 11*11*12.8cm/4.33*4.33*5.04inch
Mounting Hole Distance: 9.5*4.2cm/3.74*1.65inch
Gross Weight: 3kg/6.61lbs
Net Weight: 2.5kg/5.51lbs
Package Size: 30*20*20cm/11.81*7.87*7.87in

Package Included
1*Gear Motor

Notes
1.To ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchase.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
