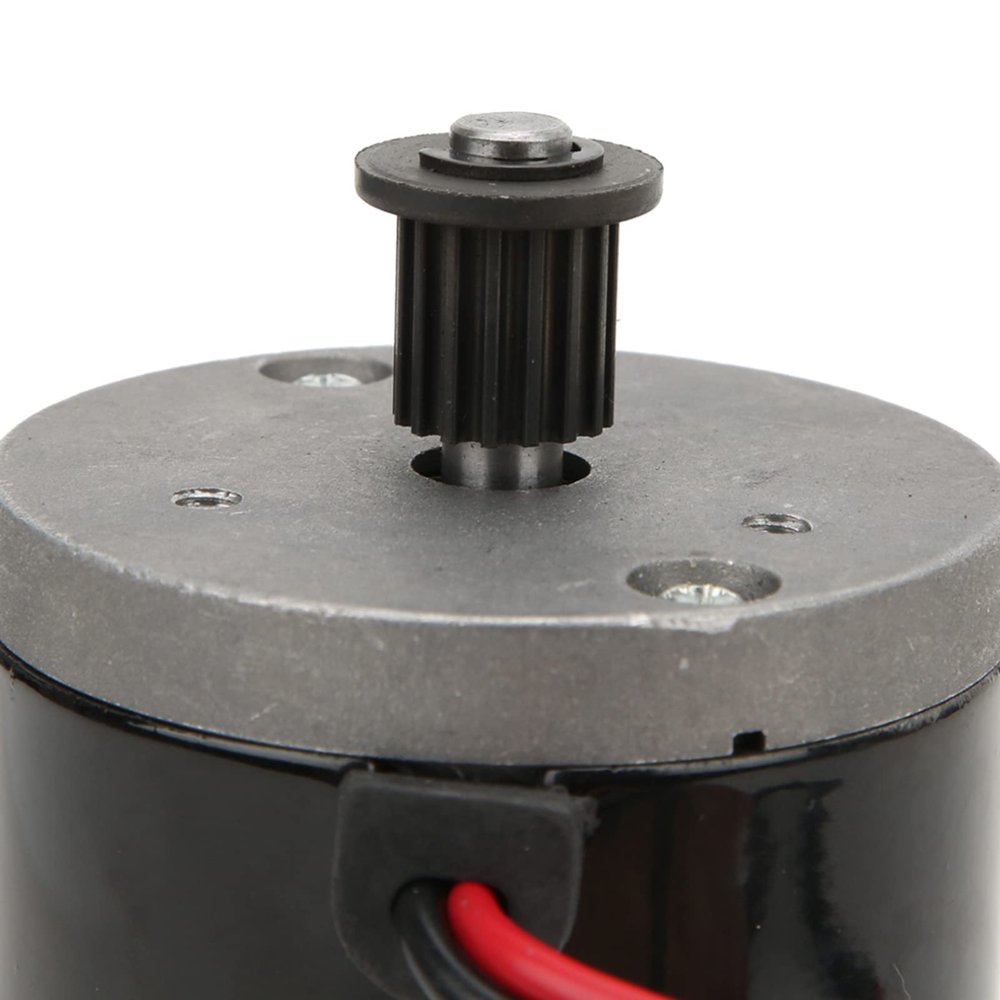

24V 150W Brush Electric MotorElectric MotorMotor,DC Chain Tooth MotorDC Chain Tooth MotorSynchronizing Wheel Electric Components & Parts Scooters & Equipment

Description

• [ Design] Equipped with metal pulley, solid and reliable, fine workmanship, reduce energy loss, more energy-saving and environmental .,Motor
• [Efficient Power] Adopt small DC brush motor, strong power output, fast start, more smooth driving.,Electric Motor
• [ and Stable] Made of aluminium with fine processing, superior performance, stability and reliability, long service life.,Synchronizing Wheel Electric Motor
• [Multi-Scene Application] Suitable for many kinds of electric tools, such as electric scooters, electric , etc., bringing more convenience and comfort.,DC Chain Tooth Motor
• SERVICE GUARANTEE: If you are not satisfied with the 24V 150W Brush Electric MotorElectric MotorMotor we received, you can us by email at any time, we will reply and solve your problem in time, and strive to provide better service.

Specification:
Item type: DC Brush Motor
Model: ZY6812
Material: Aluminium
Color: Black
Weight: Approx. 1368g
Rated Power: 150W (kW)
Rated Voltage: 12 (V)
Rated Speed: 3500 (rpm)
Main of Application: Electric Scooter, Electric Bike
3C Rated Voltage Range: Below DC 36V
Rated Current: Rated speed (rpm): 2500 5%
Maximum Speed (rpm): 3500 5%
No-Load Current: Rated : 0.56
: Belt Pulley, Metal
Axial Diameter: Approx. 8mm/0.3in (One side milling : Approx. 1mm/0.04in)
Efficiency: > 68%
Motor Length: Approx.100 mm/ 3.9 inches
Motor Diameter: Approx. 68 mm/ 2.7 in
Axial Diameter: Approx. 8 mm/ 0.3 in
Motor Fixed Hole Distance: Approx. 36mm/ 1.4in
Sprocket: 25H 9 teeth sprocket

Package List:
1 x Motor
