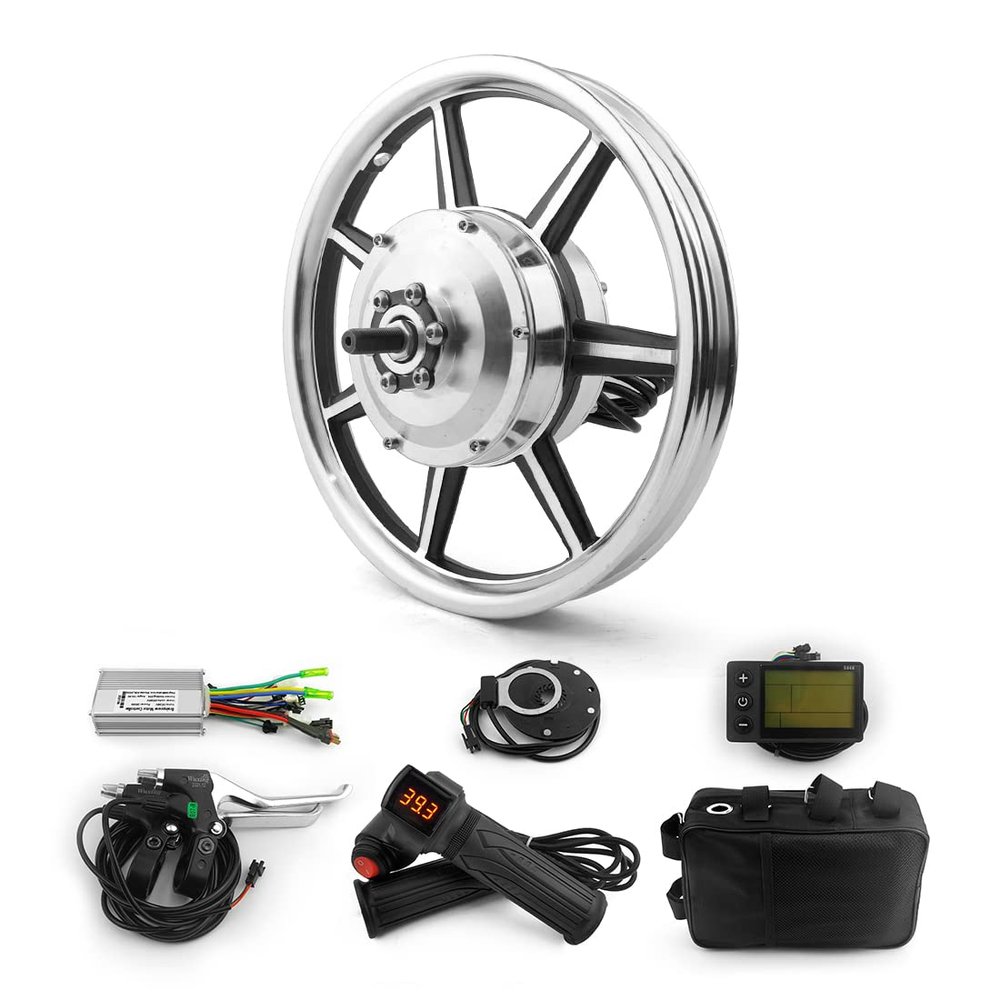

14 Inch 350W Brushless Gear Motor Wheel With LCD Display For Small Scooter Front Drive Bike Bicycle(36V350W)

Description

• 1). 1x 14" brushless hub motor (for front wheel)
• 2). 1x Motor controller
• 3). 1x Throttle handle
• 4). 1x Brake lever
• 5). 1x Pedal assist sensor
• 6). 1x y bag (
• 7). 1x LCD display
• 8). 1x tire and tube
• Note: this kit without charger .

14 Inch 350W Electric Brushless Gear Motor Wheel With LCD Display Pedal Assist Sensor For Small Scooter Front Drive Bike Bicycle
Note:
1). This kit is for the 14-inch bike front wheel, it also fit some scooters.
If you do not know what kit you need, please send me your vehicle picture and tell me your request.
----------
2). This motor is a brushless hub motor, it can run about 25km/h.
----------
3). This motor is a geared motor, it has planetary gear inside, it can drive forward but can not drive reverse.
----------
4). The difference between 24V and 36V is the working current, if you want to ride longer, I recommend 36V kit.
----------
5). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 24V 15Ah or 36V 12Ah.
----------
6). If you want this motor with tire, please choose the "with tire" option, thank you.
----------
The kit includes:
1). 1x 14" brushless hub motor (for front wheel)
2). 1x Motor controller
3). 1x Throttle handle / thumb throttle
4). 1x Brake lever / brake sensor
5). 1x Pedal assist sensor
6). 1x Battery bag (no battery)
7). 1x LCD display
Note: this kit without battery and battery charger .

-------------------------------
Motor specification
Model: L-Q14
Voltage: 24 / 36 / 48 Volt
Output: 350 Watt
Brake Type: V brake / Disc brake
Max Speed: 410 RPM
Rated Efficiency: 78%
Suitable for: 14" bike front fork 100mm
Net weight: 3.35 KG
This motor can use V brake or disc brake,
and make sure your fork distance is more than 100MM
Controller:
LCD display:
Throttle handle:
Brake lever:
PAS(pedal assist sensor):
Bag:
(outer dimension is about 235x155x85 mm, fit the battery dimension 220x150x80 mm)
